We build the part that lifts the load
Every cylinder in our catalogue is made at our facility in Karatay, Konya — from st 52 drawn tube, with hard chromed stages, for a working pressure of 170 bar.

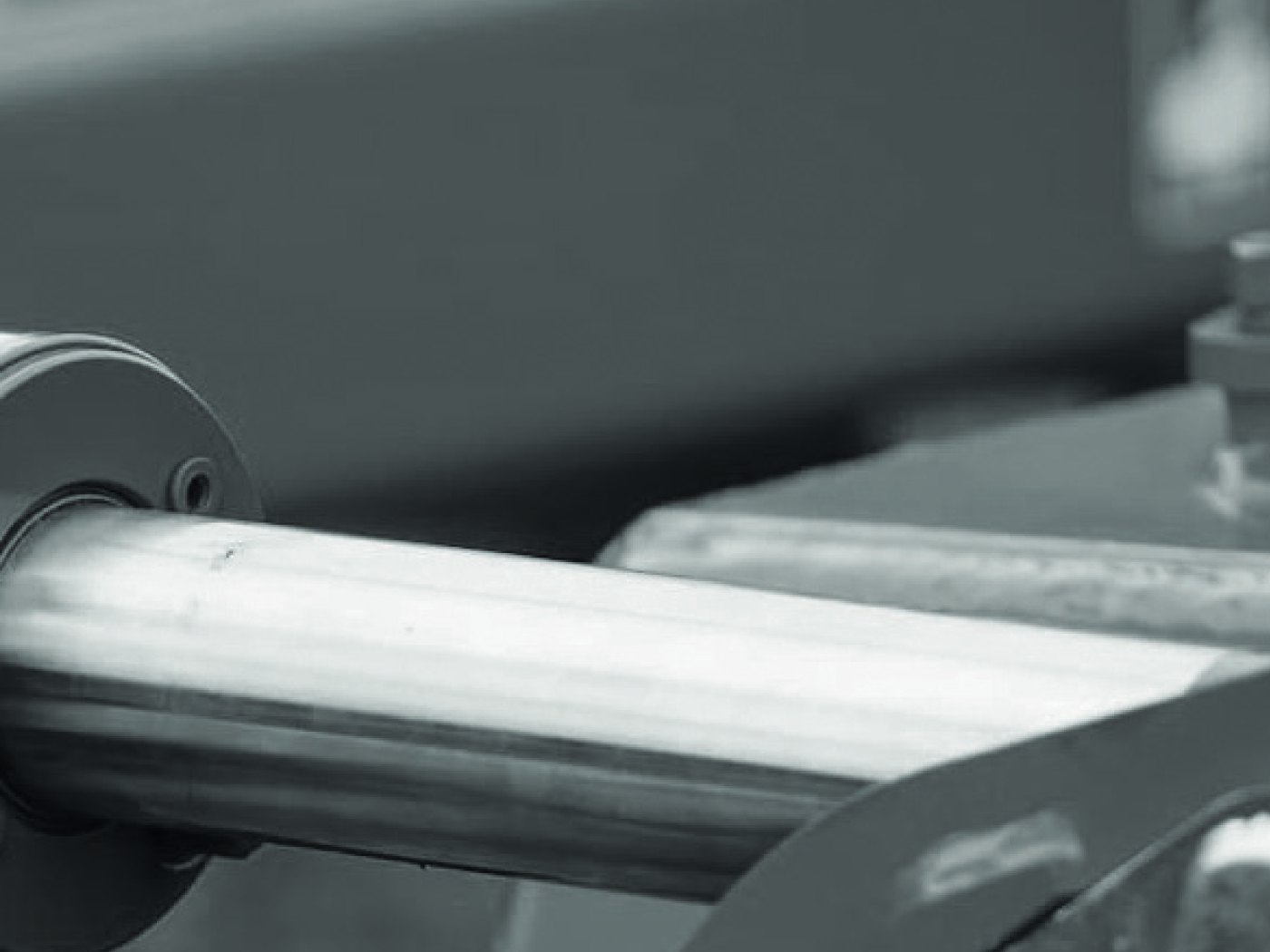

Hard chromed stages, drawn from st 52 tube
Every cylinder body is manufactured from st 52 grade cold drawn tube, and all stages are hard chrome plated — protecting the surface against both wear and corrosion.
Cylinders are designed for a working pressure of 170 bar, withstand up to 190 bar, and operate between −23 °C and +80 °C.

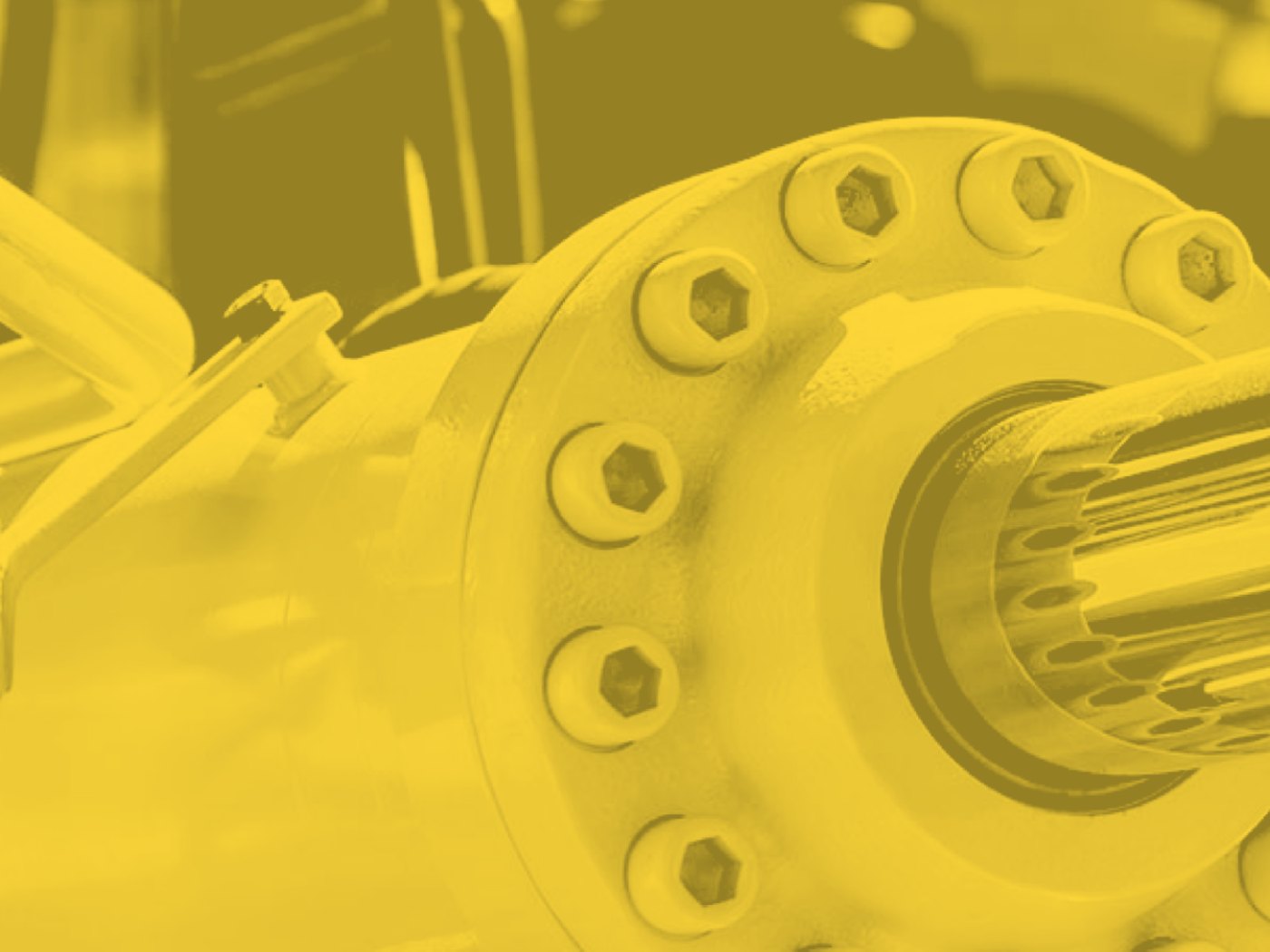

Every dimension tabulated, every code in the catalogue
From body length to stroke, from pivot length to bracket hole spacing, every dimension is listed in the type tables. The order code is built from those same figures: cylinder series, first stage diameter, number of stages, stroke and mounting type.
During installation the cylinder is pulled out by 30 mm, and the design allows a further +20 mm of tolerance on top of that.

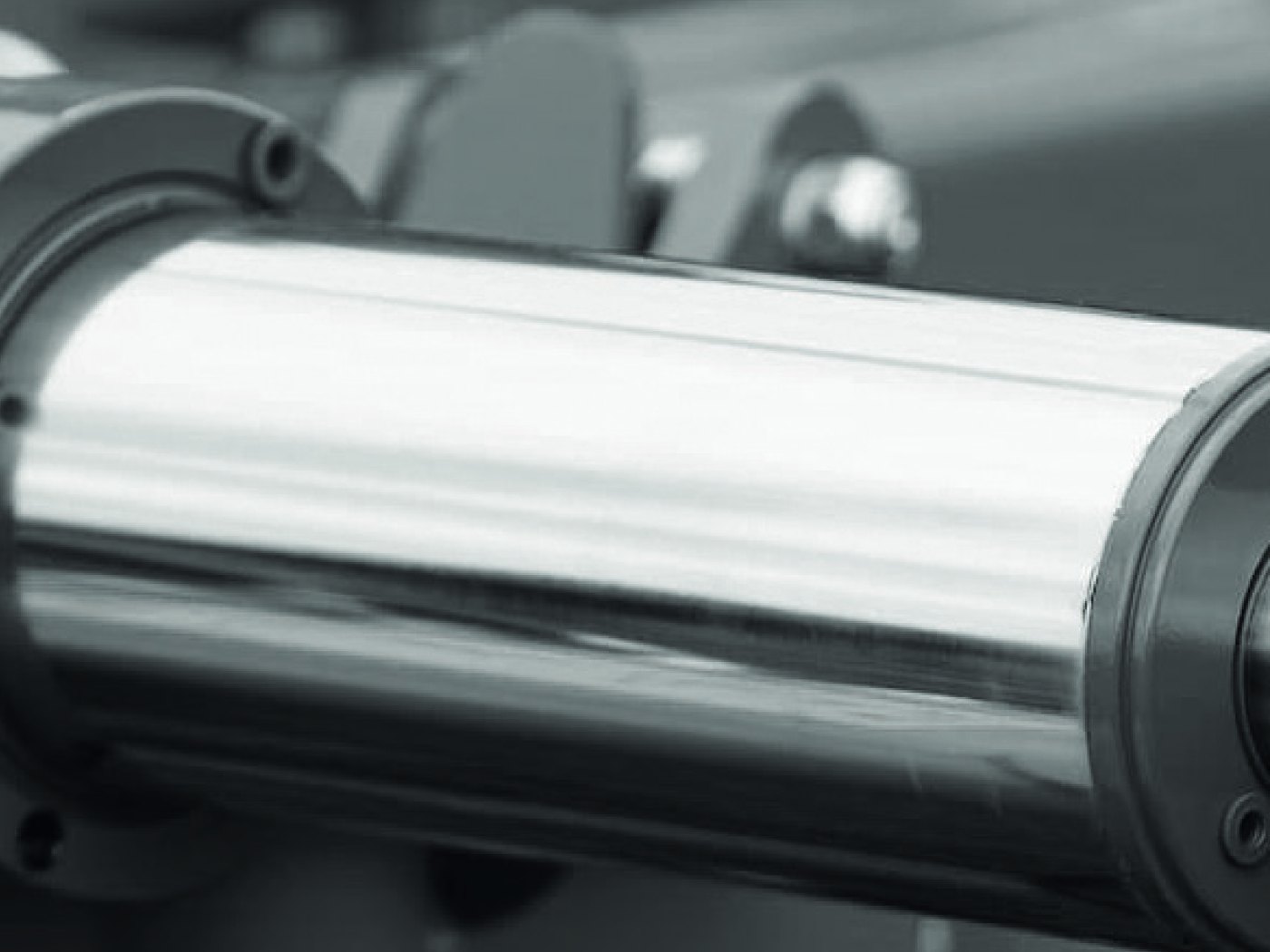

Six cylinder types, two bracket families
The TA, TB, TC, TE and TH types are built for front end tippers and the TK type for under body systems. The number of stages ranges from 3 to 7 and the first stage diameter from 135 mm to 220 mm.
The lifting and chassis brackets that mount the cylinder to the vehicle are in the same catalogue. Standard colour is RAL 7016, and when the order code ends in 0002 the bolts, nuts and washers are supplied as well.
All 81 provinces, more than 20 countries
From Adana to Düzce, we reach every one of Türkiye’s 81 provinces. The map on the closing page of our catalogue shows it: there is no province where we are not present.
Cylinders leaving our facility in Karatay, Konya are exported to more than 20 countries.
Our Vision
Our innovative designs and advanced engineering solutions in hydraulic pistons, combined with the highest efficiency and durability, deliver performance beyond the industry.
Our Mission
Our mission is to provide high-performance solutions by combining quality and reliability in the hydraulic piston industry. We strive to understand our customers' needs, deliver customized solutions, and consistently exceed quality standards. By following technological innovations, we continue to offer solutions that meet and exceed our customers' expectations as an industry leader.
The difference of buying from the manufacturer
170 bar working pressure
Every cylinder is built for 170 bar working and 190 bar maximum pressure.
Hard chromed stages
All stages are hard chrome plated, protected against wear and corrosion.
st 52 cold drawn tube
Bodies are manufactured from st 52 grade cold drawn tube.
−23 °C to +80 °C
A wide operating temperature range: the same performance in winter and summer.
Brackets included
Lifting and chassis brackets, supplied with bolts, nuts and washers on request.

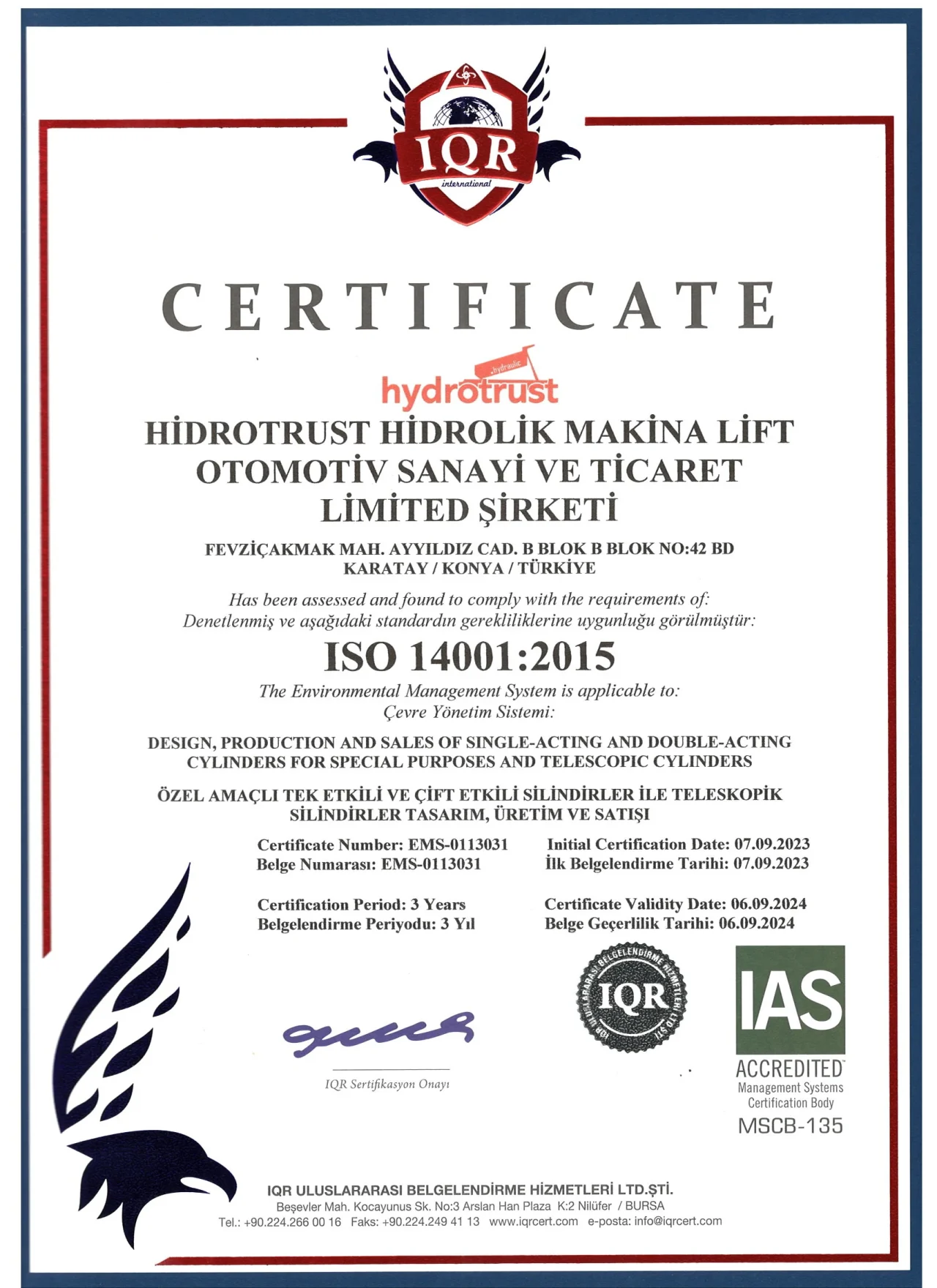

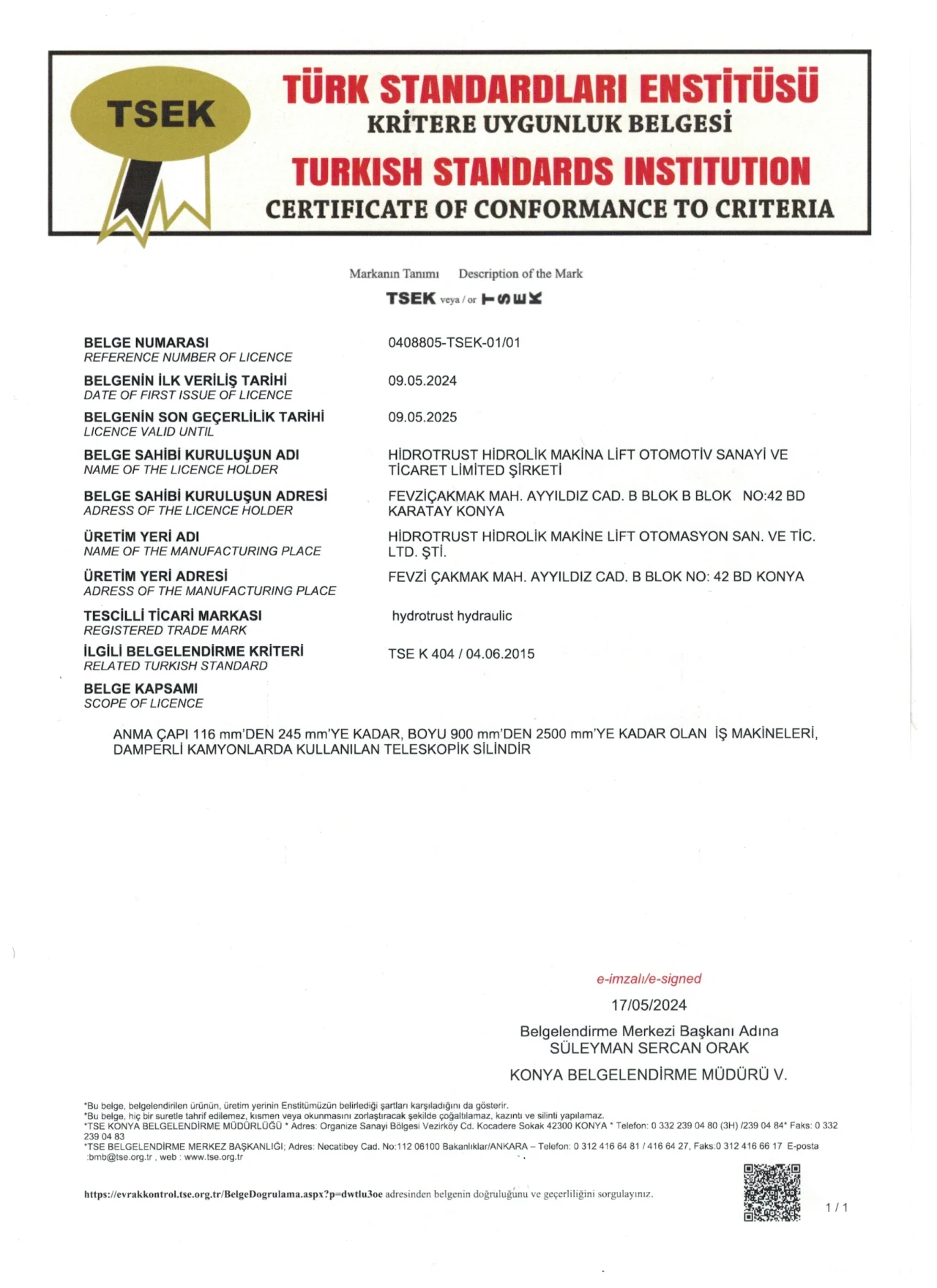

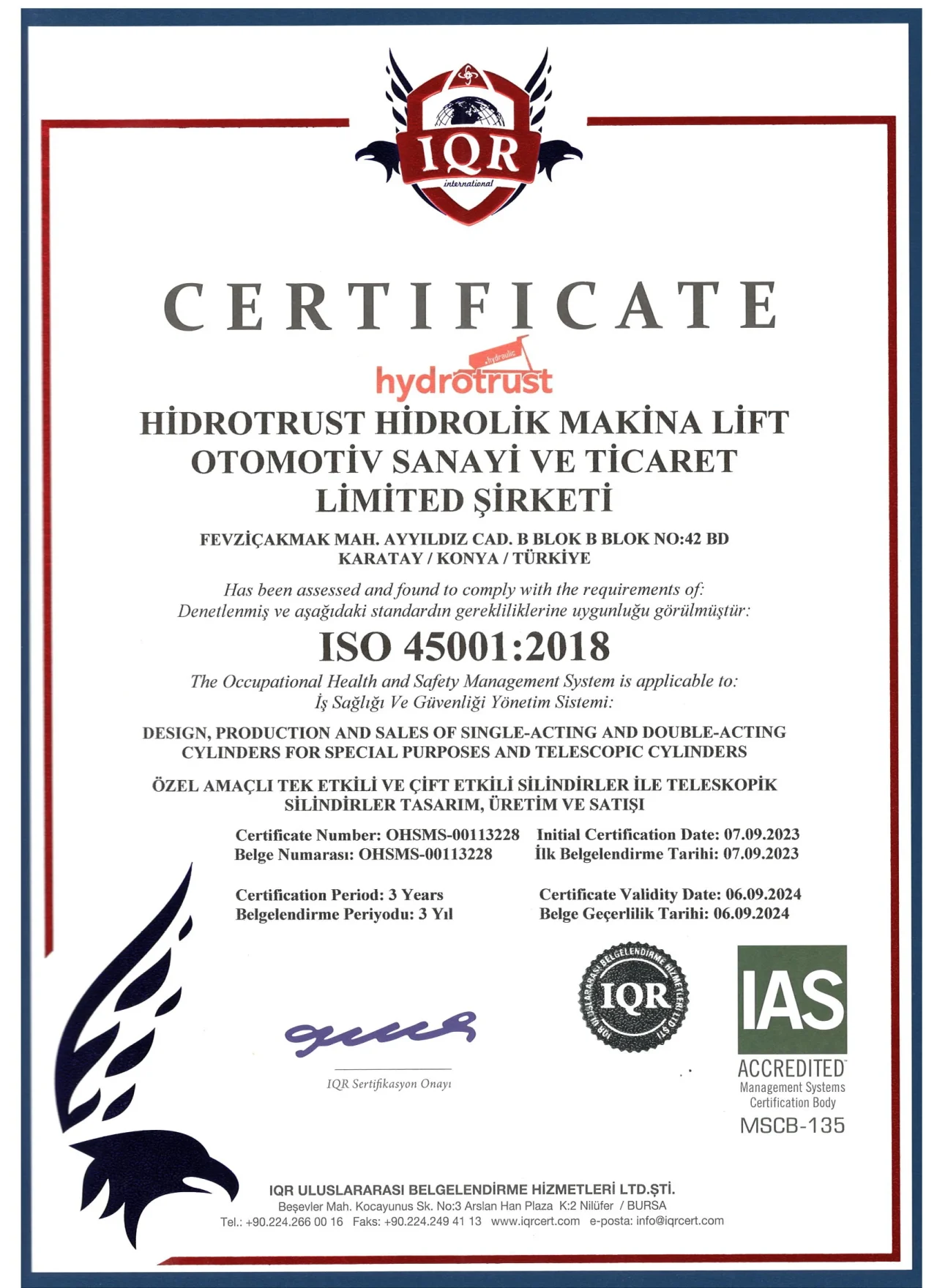

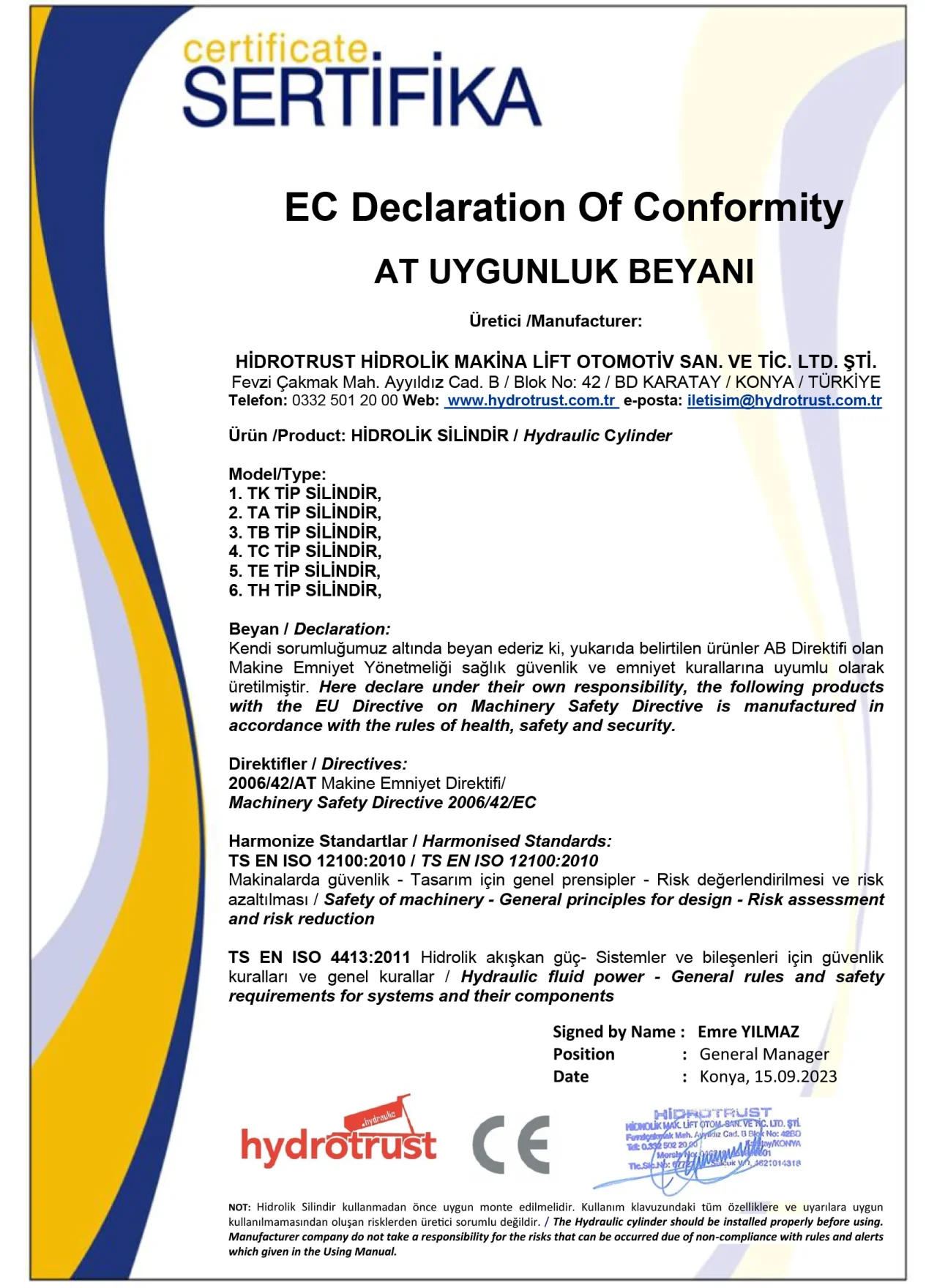

Certified production
Our quality, environmental and occupational safety systems are certified.
